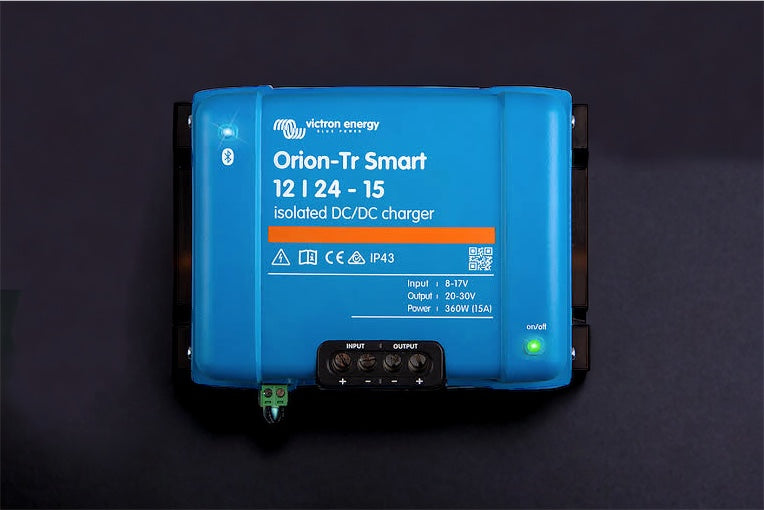

Victron Insulated DC-DC Chargers

Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

Fully programmable
- Batterychargealgorithm(configurable)orfixedoutput.
- Smartalternatorcompatibility:enginerunningdetectionmechanism.

Adaptive 3-stage charge algorithm: bulk – absorption – float

• For lead acid batteries it is important that during shallow discharges the absorption time is kept

  short in order to prevent overcharging of the battery. After a deep discharge the absorption time is

  automatically increased to make sure that the battery is completely recharged.

• For lithium batteries absorption time is fixed, default 2 hours.

• Alternatively, a fixed output voltage can be chosen.

  Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)
  The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).

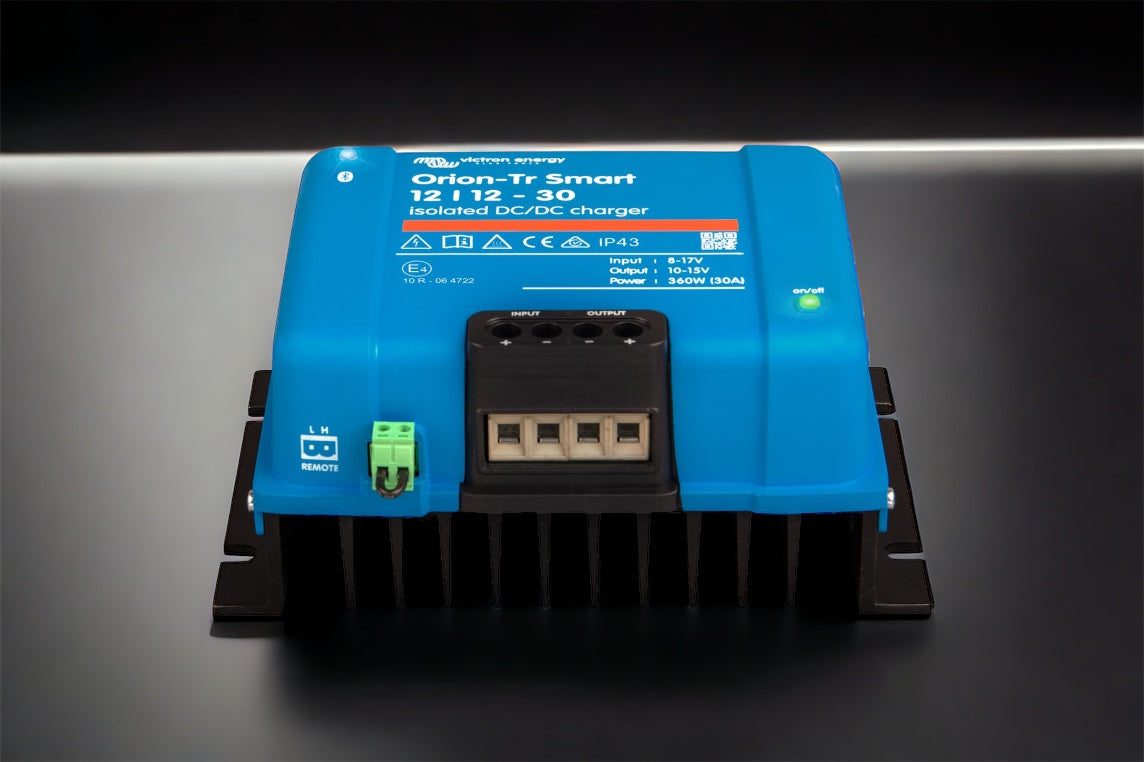

  Remote on-off
  A remote on/off switch or relay contact can be connected to a two-pole connector.
  Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

  All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel.

  High temperature protected
  The output current will reduce at high ambient temperature.

  IP43 protection
  When installed with the screw terminals oriented downwards.
